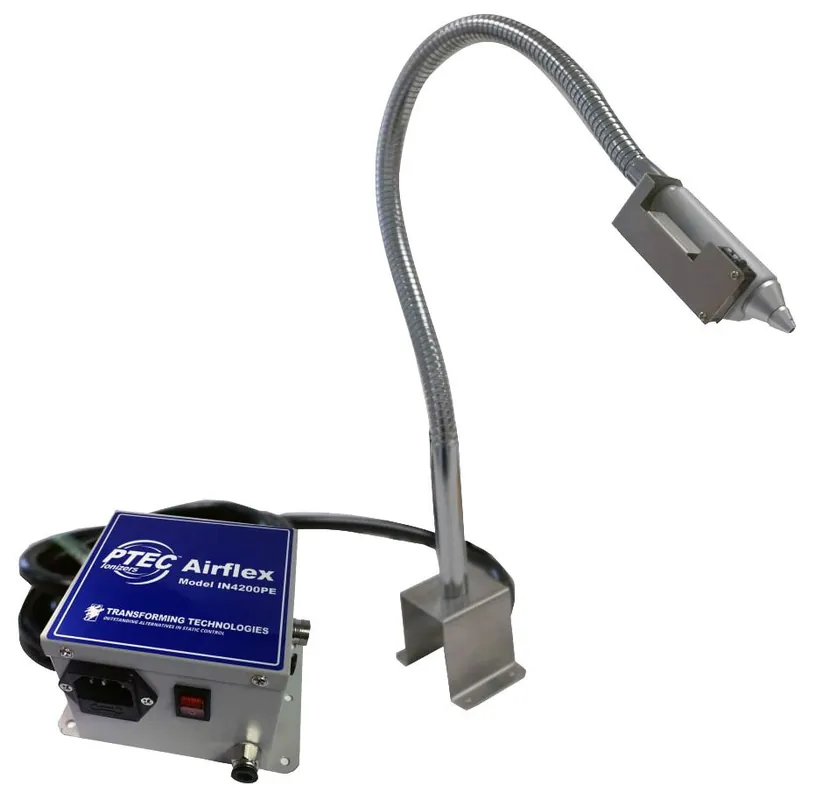

Transforming Technologies IN4200PE Ptec™ AirFLEX Ionizing Nozzle with Flexible Neck & Photoelectric Eye, 100/240V

Maintenance Savings

Ptec™ ionizers save time and money because they require no calibration. Emitter life is increased and maintenance frequency is reduced, due to 68KHz AC ion emission.

Features

The IN4200PE features the inherently stable output of all Ptec™ Ionizers and high-frequency AC (68KHz) ion emission. The flexible metal neck, with multiple nozzle options allows for easy operation and service of emitters. A foot switch and 0.01 micron filter combine to deliver clean air at the correct pressure when needed.

Applications

The IN4200PE is designed to neutralize electrostatic charges in bench top environments, sensitive materials assembly, Medical Device, SMT, Electronics Assembly, Automotive packaging, cleanroom and laboratory environments.

Verification and Calibration

The IN4200PE ionizer comes factory calibrated and with a calibration certificate. Ionizer performance can be tested and verified with a charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least 1-per year.

Specifications

Power Input: AC 100 to 240V, 50/60Hz

Power Outlet: un-fused, 0.5A or 1.0A max.

Ion Emission: AC, 68KHz

Balance: +30 volts

Decay Time: 1000V-100V, < 2.0 seconds at 12"

Temperature: 66-78°F (19-25°C)

Humidity: 20-60% RH (non-condensing

Air Pressure: 10-100 PSI, CDA or N2

Indicators Power: Green LED, Alarm: Red

Controls: Footswitch

Mounting: Table Mount

Emitter Points: Tungsten Alloy

Dimensions: 12″H x 5.75″W x 7.25″D,

Filter Option: 0.01 micron filter (replaceable)* *Note: Unit also may be operated without filter.

Gas Input & Connection: 20-75 psi, CDA or N2, 1/4″ male industrial interchange quick disconnect or 1/4″ quick release tube fitting

Warranty: 1-year limited warranty

Product Overview

More Information

SKU	I378480
Part No.	IN4200PE
Brand	Transforming Technologies
Input	100 to 240V
