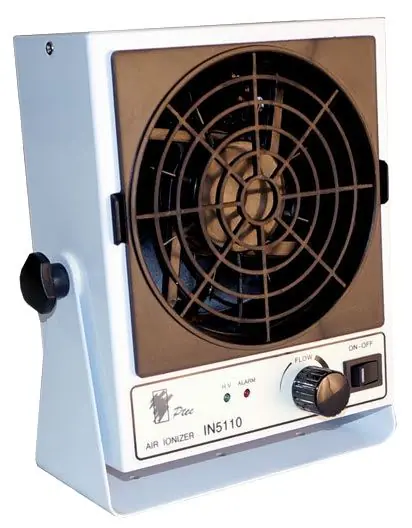

Transforming Technologies IN5110 Ptec™ Benchtop Ionizer Blower, 100/240V

Applications

The IN5110 is designed to neutralize electrostatic charges in personal bench top environments, sensitive materials assembly, SMT, Electronics Assembly, Automotive packaging, cleanroom and laboratory environments.

About Ptec™ Technology

A specialized piezoelectric high voltage transformer makes Ptec™ ionizers among the most reliable ionizers manufactured. Small, lightweight and stable, Ptec™ products are designed to remain in balance and to alarm when the HV output affects performance. The model IN5110 benchtop static eliminator produces a 68KHz AC output of approximately 2200V and a continuous stream of balanced air ions. Ionizers that use Ptec™ technology do not require calibration and only minimal maintenance.

Features

On the front panel of the IN5110 are two LEDs. The green LED indicates that power is applied to the unit. The red LED is illuminated when an alarm condition occurs. A variable fan speed control, on-off switch, and removable finger guard are also on the front panel. The rear panel of the ionizer has the 24 VDC power input connector and a grounding point.

Physically small and light.

Rapidly decays static charges.

Excellent ion balance and ionization performance.

Ionization (green) and HV alarm (red) lights.

No periodic adjustments.

Durable, replaceable tungsten alloy emitter points.

Removable front grill. Adjustable air volume.

Power Requirements

The IN5110 can work on all power circuits, from 100-240 volts, without any adjustments. This means the standard ionizer can be used in many different countries and power circuits and performance will not be affected.

Verification and Calibration

The IN5110 ionizer comes factory calibrated and with a calibration certificate. Ionizer performance can be tested and verified with a charge plate monitor. Important tests to perform are positive and negative decay times and ion balance. It is recommended to test ionizer performance at least 1.0 per year.

Specifications

Power Input: 24 VDC, 12W

Power Outlet: un-fused, 0.5A or 1.0A max.

Ion Emission: AC, 68KHz

Balance: +10 volts

Decay Time: 1000V-100V, < 2.0 seconds at 12"

Temperature: 66-78°F (19-25°C)

Humidity: 20-60% RH (non-condensing

Airflow: 115 cfm, High speed

Noise Level: 60dB(A) (Distance 1.0 meter)

Indicators: Power: Green LED, Alarm: Red

Controls: On/off switch, variable fan speed

Mounting: Adjustable bracket/stand

Emitter Points: Tungsten Alloy

Filter: Replaceable

Dimensions: 7.5″H x 7.1″W x 2.7″D, / (19.0 x 18.0 x 7.6 cm)

Warranty: 1-year limited warranty

Product Overview

More Information

SKU	I174243
Part No.	IN5110
Brand	Transforming Technologies
Input	100 to 240V
