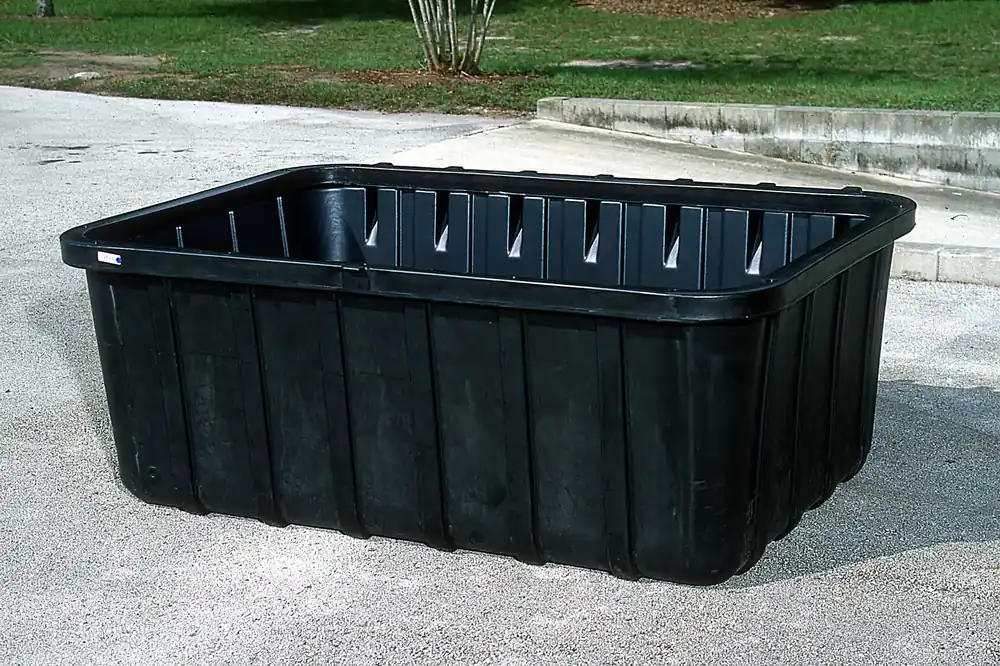

UltraTech Ultra-Containment Sump®

UltraTech Ultra-Containment Sump®

Manufacturer: UltraTech

Part Number: 28XX

Description:

Once upon a time… long, long ago (ok, maybe not that long ago)… spill containment for fuel tanks often went ignored or was a hole in the ground lined with plastic sheeting. But operators have become wiser and/or more environmentally conscious and enforcement has been stepped up.

But when you consider the options, the Ultra-Containment Sump really does seem like a “no-brainer”. Yes, it costs more than a sheet of plastic and some man hours, but if there’s a spill onsite, it’s going to outperform that “homemade” containment every time. Not only that but when you need to move to another area of the site or to another site completely, the containment sump is a completely portable solution.

Product Highlights:

• Spill solution – eliminate costly spills while storing fuels, oils, and other hazardous liquids.

• Rugged, all-polyethylene construction will not rust or corrode.

• Use with optional Ultra-Self Bailer for outdoor spill containment – self bailer allows clean stormwater to passively drain from sump while capturing hydrocarbons. (Note: To use the Ultra-Self Bailer, Ultra-Containment Sumps WITH 3/4″ DRAIN must be specified when ordering).

• Pullover cover option keeps rainwater out, yet allows easy access for pumping waste collection.

Part No.

Model

Dimensions in.

Containment Capacity gal.

Weight lbs.

2800	Ultra-275 Containment Sump Without Drain	84.5 x 43.8 x 29	360	90
2801	Ultra-275 Containment Sump With Drain	84.5 x 43.8 x 29	360	90
2820	Ultra-550 Containment Sump With Drain	90 x 61 x 32.8	605	108
2823	Ultra-550 Containment Sump Without Drain	90 x 61 x 32.8	605	108
2830	Ultra-1000 Containment Sump Without Drain	149 x 64 x 33	1100	244
2831	Ultra-1000 Containment Sump With 3/4″ Drain	149 x 64 x 33	1100	244
2832	Ultra-1000 Containment Sump With 2″ Drain	149 x 64 x 33	1100	244

Parts and Accessories:
Ultra-Self Bailer

Standard (Part# 9935)

Large (Part# 9937)

XL (Part# 9926)
