UltraTech Ultra-Drum Rack Containment Systems®

UltraTech Ultra-Drum Rack Containment Systems®

Manufacturer: UltraTech

Part Number: See table

Description:

A horizontal drum coupled with a spout can often times make for the optimal dispensing setup. But it also can make for the “optimal” spill! This sort of set up, unlike its vertical counterpart, has gravity working against it. A spout that’s left open or a faulty gasket or seal could be disastrous.

If you’ve got your rack already, then you can just add one of our . But if you’re looking for a complete system, then look no further! These systems provide the racks and the spill containment needed for 1, 2 or 4 fifty-five gallon drums.

Product Highlights:

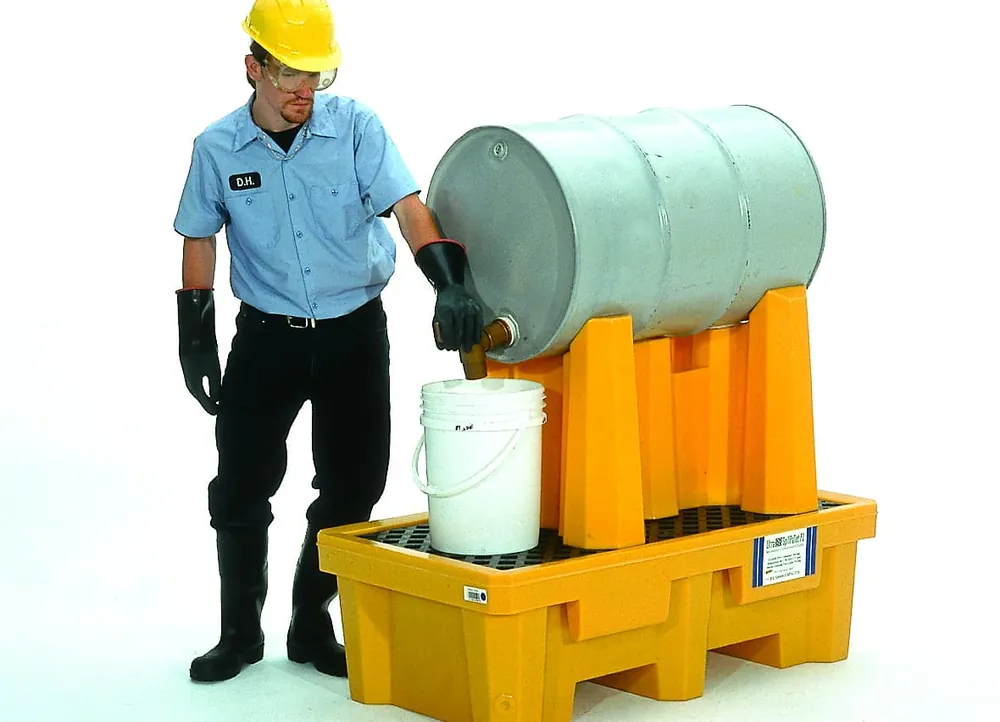

• Ultra-Drum Rack Containment Systems offer a safe and environmentally sound means of dispensing from 55-gallon, horizontal drums.

• Available in 1,2 and 4-drum configurations, the all-polyethylene designs eliminate rust and corrosion commonly found with metal drum racks.

• Ultra-Drum Rack Systems improve worker safety by keeping slippery chemicals and oils off the plant floor.

• Drum rack units keep drums slightly tilted forward to maximize dispensing.

• Optional dispensing shelf provides a service platform for buckets, safety cans, and other containers.

• Optional locator pins install in the bottom of drum rack and into grating of the pallet to keep racks from sliding and moving.

Part No.

Model

Dimensions in.

Grating Surface in.

Weight Capacity UDL lbs.

Containment Capacity gal.

Weight lbs.

2386	1-Drum System, Without Drain	52 x 29 x 49.5	48 x 24	750	66	93
2387	1-Drum System, With Drain	52 x 29 x 49.5	48 x 24	750	66	93
2383	2-Drum System, Without Drain	53 x 53 x 44.8	48 x 48	1500	66	137
2384	2-Drum System, With Drain	53 x 53 x 44.8	48 x 48	1500	66	137
2380	4-Drum System, Without Drain	53 x 53 x 77.8	48 x 48	3000	66	189
2381	4-Drum System, With Drain	53 x 53 x 77.8	48 x 48	3000	66	189
