UltraTech Ultra-Grate Guard®

UltraTech Ultra-Grate Guard®

Manufacturer: UltraTech

Part Number: See table

Description: Stormwater products that install under the catch basin’s grating are nice from an aesthetic standpoint. But in some applications, the function is more important than form. In other words, looks aren’t the primary concern, it just needs to work well.

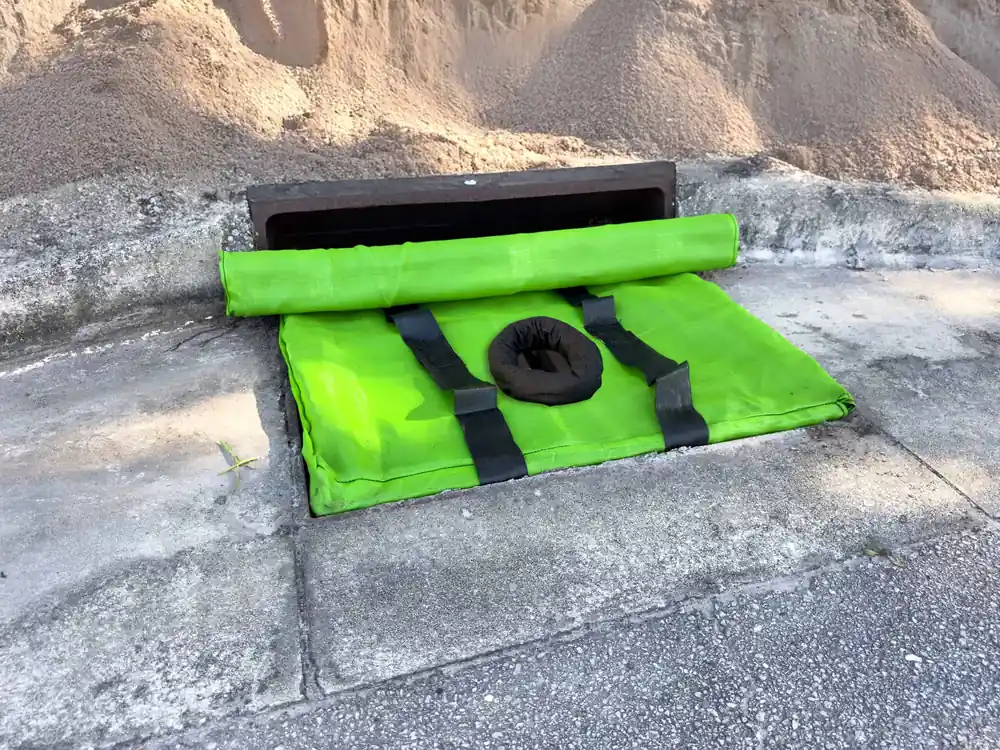

The Ultra-Grate Guard slides onto the storm drain’s grate and uses heavy-duty hook and loop fasteners to keep it closed. Once installed, sediment, dirt, silt, and other pollutants are easily removed with a broom, flat shovel, or similar tool.

No need to remove the grating. Everything has been kept at street level. This can be especially valuable on construction site and other areas with large amounts of pollutants.

Product Highlights:

• For use with flat grate catch basins.

• Allows run-off to flow through while blocking sediment.

• Standard and custom sizes available.

• Material: High Flow Woven

Part No.

Model

Dimensions in.

Weight lbs.

9276-SED	Sediment Only Model	36 x 24 x 4	2
9850	Sediment Only Model, High Flow w/ Overflows	24 x 24 x 4	2
9851	Sediment Only Model, High Flow w/ Overflows	28 x 28 x 4	2
9852	Sediment Only Model, High Flow	18 x 36 x 4	2
9853	Sediment Only Model, High Flow	18 x 48 x 4	2
9854	Sediment Only Model, High Flow	24 x 36 x 4	2
9855	Sediment Only Model, High Flow	24 x 40 x 4	2
9856	Sediment Only Model, High Flow	24 x 48 x 4	2
9857	Sediment Only Model, High Flow	28 x 42 x 4	2
9858	Sediment Only Model, High Flow	36 x 36 x 4	2
9859	Sediment Only Model, High Flow w/ Curb Deflector	18 x 36 x 4	2
9860	Sediment Only Model, High Flow w/ Curb Deflector	24 x 36 x 4	2
9861	Sediment Only Model, High Flow w/ Curb Deflector	24 x 40 x 4	2
9862	Sediment Only Model, High Flow w/ Curb Deflector	24 x 48 x 4	2
9863	Sediment Only Model, High Flow w/ Curb Deflector	28 x 42 x 4	2
