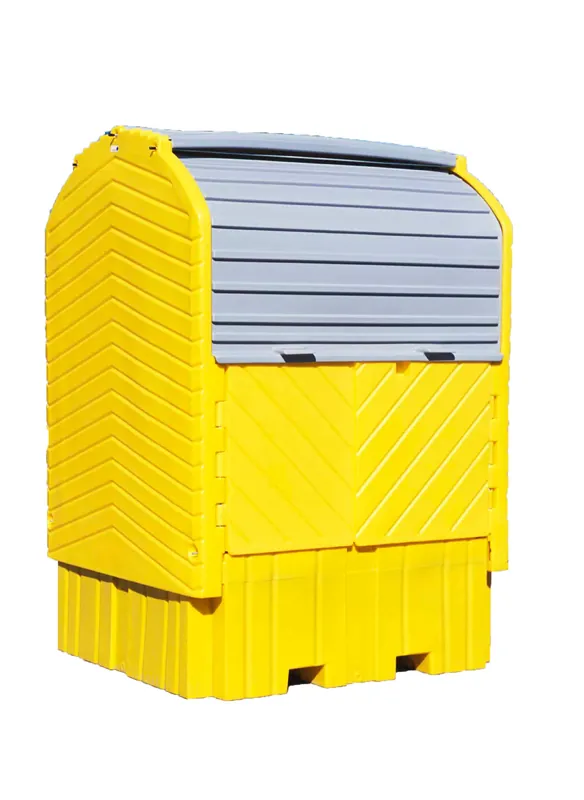

UltraTech Ultra-IBC Hard Top®

UltraTech Ultra-IBC Hard Top®

Manufacturer: UltraTech

Part Number: 1161, 1162

Description: The Ultra-IBC Hard Top spill pallet provides spill containment for IBCs, tanks and other large containers. The all-polyethylene roll top unit provides both protection from unauthorized access as well as sun, rain and the elements.

Simply place your IBC or tank into the unit with your forklift or other equipment, close the doors and rest easy knowing that you are protected.

You may be contacted with a freight quote

Product Highlights:

• Upper roll top door and lower swing-out doors combine to allow easy and convenient access to IBC.

• Safely stores an IBC tank with maximum dimensions of 52″ x 52″ x 61″.

• Low profile (28″ height), 365 gallon containment sump allows safe material handling and dispensing.

• Five inner polyethylene (LLDPE) columns support uniformly distributed loads of up to 8,500 lbs. All components are easily removed for cleaning.

• UV inhibitor in polyethylene (LLDPE) resin resists degrading effects of sunlight, adding years to outdoor service life.

• Forkliftable, lockable, all-polyethylene design will not rust or corrode.

Part No.

Model

Dimensions in.

Grating Surface in.

Weight Capacity UDL lbs.

Containment Capacity gal.

Weight lbs.

1161	IBC Hard Top With Drain	64.5 x 62 x 96	52 x 52	8500	365	525
1162	IBC Hard Top Without Drain	64.5 x 62 x 96	52 x 52	8500	365	525
