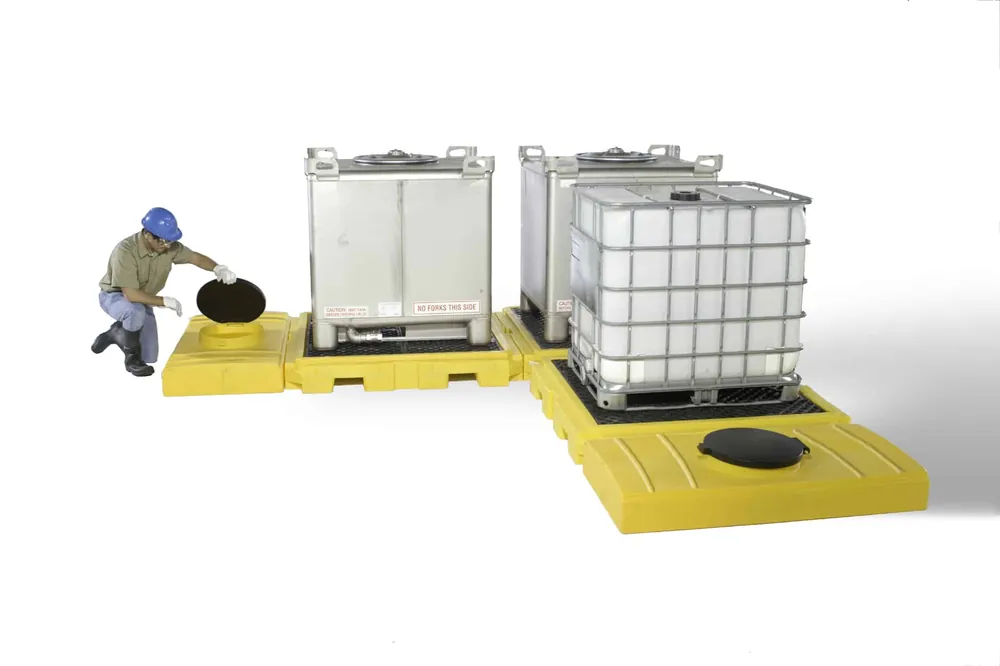

UltraTech Ultra-Modular IBC Spill Pallet®

Ultra-Modular IBC Spill Pallet®

Manufacturer: UltraTech

Part Number: 1125, 1126, 1127, 1128

Description: Storing multiple IBCs, totes or tanks can take up a lot of room, and a lot of money. But with the Ultra-Modular IBC Spill Pallets, it can take up less of both. By connecting the containment sumps and sharing walls, these units offer an economical solution that takes up a relatively small amount of space.

Product Highlights:

• Each IBC tank sits on a heavy-duty spill pallet with a capacity of 9,000 lbs UDL.

• Each of the low profile spill pallets has a containment capacity of 75 gallons and measures 62″ x 62″ x 8.75”H.

• Any number of the modular spill pallets can be connected together with bulkhead fittings. Two (2) bulkhead fittings are used to connect one pallet to the next.

• To increase containment capacity, a 65-gallon capacity expansion tank is available.

• “Flow-through” bulkhead fittings (1.25-inch diameter) are used to connect spill pallets and expansion tanks together.

• Bulkhead fittings allow spills to be channeled throughout the containment system, thereby “borrowing” containment capacity from adjacent spill pallets and expansion tanks.

• Constructed of 100% polyethylene, eliminating the potential for rust and corrosion. They offer excellent chemical resistance to a broad range of chemicals including acids, solvents, and oils.

  Product Ordering Notes:

  Standard offerings include 2-tank, 3-tank, 4-tank and 5-tank models. In addition, components may be purchased separately to allow users to “build-your-own” configurations for indoor models.

  Connecting an expansion tank to a spill pallet also requires two (2) bulkhead fittings.

  Bulkhead fittings are included with each 2-, 3-, 4-, or 5-tank model.

  Once five (5) or more spill pallets are connected together, the total containment capacity is 375 gallons minimum and does not require the use of an expansion tank to meet the spill containment regulations.

Part No.

Model

Dimensions in.

Grating Surface in.

Weight Capacity UDL lbs.

Containment Capacity gal.

Weight lbs.

1118	Assembly Kit (Required)	N/A	N/A	N/A	N/A	2
1125	2-Tank Model	186 x 62 x 11	52 x 52	9000	280	310
1126	3-Tank Model	248 x 62 x 11	52 x 52	9000	355	435
1127	4-Tank Model	279 x 62 x 11	52 x 52	9000	365	531
1128	5-Tank Model	310 x 62 x 11	52 x 52	9000	375	625
