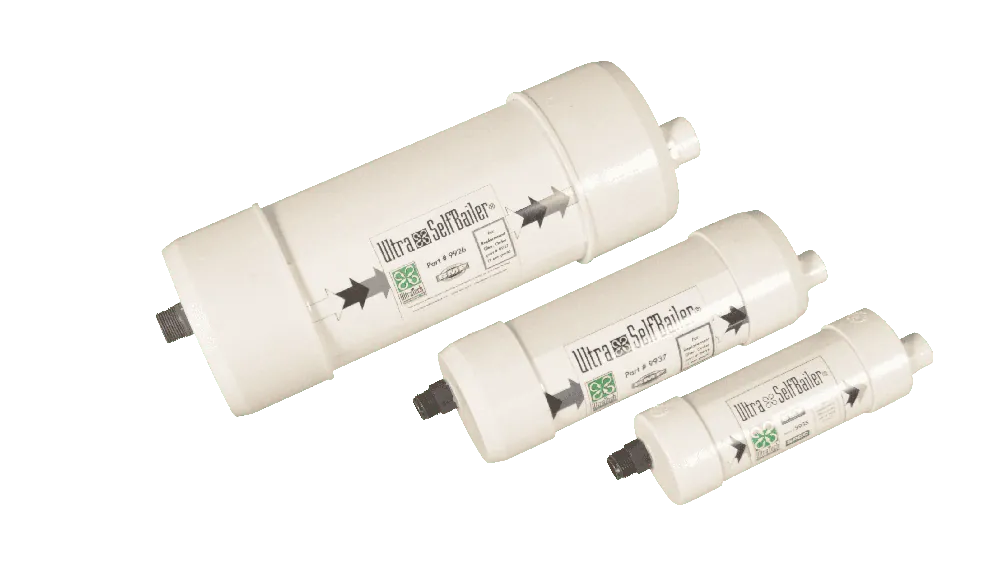

UltraTech Ultra-Self Bailer®

UltraTech Ultra-Self Bailer®

Manufacturer: UltraTech

Part Number: 9926, 9935, 9937

Description:

Outdoor spill containment presents a challenge that is not seen indoors…rain. Unless outdoor spill containment is covered / protected from the elements, it is susceptible to rainfall. If a containment unit’s sump gets filled up with rainwater, it loses its capacity to contain spills. In other words, for every gallon of rain in the sump, there is one less gallon of chemical / fuel / hazmat that can be contained.

The Ultra-Self Bailer is designed to attach to any spill containment unit, typically by a bulkhead fitting. Rainwater drains through the bulkhead fitting and any residual oil, gas or other hydrocarbons is removed by the filter media inside of the unit, allowing only clean water to exit. In the event of a spill, the media swells, completely sealing off the self bailer preventing any liquid from escaping.

Product Highlights:

• The best protection for non-monitored containment sites.

• Helps eliminate problems associated with the collection of rainwater in outdoor containment products.

• Simple installation – can be connected to almost any UltraTech containment product.

• Hydrocarbon “sheens” and modest spills are captured – clean stormwater drains through the outflow port.

• Larger or concentrated spills activate “auto shut-off” mechanism.

• Manual shut-off valve can be used to secure all draining operations, change out the filter cartridge.

• Filters are quickly and easily replaced.

• PVC construction – will not rust or corrode.

Part No.

Model

Dimensions in.

Weight lbs.

Notes

9926	XL	39 x 6.5 x 6.5	11	Capacity: 100 fl oz. | Flow Rate: 12.7 gal per hour
9935	Standard	28 x 3.5 x 3.5	2.5	Capacity: 14 fl oz. | Flow Rate: 4.8 gal per hour
9937	Large	36 x 4.5 x 4.5	6	Capacity: 27 fl oz. | Flow Rate: 6.6 gal per hour

Replacement Filters:

XL Filter Part #9927

Standard Filter Part #9936

Large Filters Part #9938
