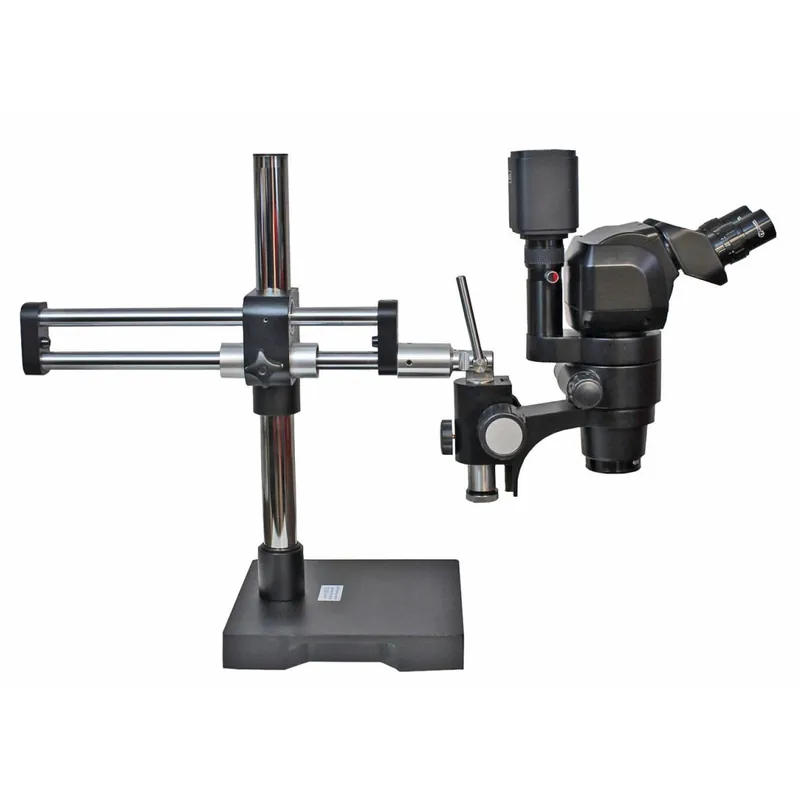

Unitron 23800RB-TRT-ESD VIP Trinocular Microscope

Product Option s

4K Camera & LED Light Ring

Includes Trinocular Stand, LED-3000 Ring Light, 4K Camera & Video Adapter

Excelis HD Camera & LED Light Ring

Includes Trinocular Stand, LED-3000 Ring Light, Excelis HD Camera & Video Adapter

Overview

With an ergonomically designed viewing head (inclination 0 degrees to 30 degrees) the VIP Stereo-Zoom series allows for individualized adjustment so each operator can maintain a comfortable and correct posture during use – neck straight, eyes forward. The beam splitter/camera port allows for simultaneously viewing images through the eyepieces and on a monitor.

With an ESD finish (black) body, and ESD dual boom ball-bearing stand the VIP Trinocular microscope is ideal for a diverse range of inspection applications of sensitive electronics or other devices, with the additional option of adding a camera and video adapter. The body and stand are treated with a metal-laced powder coat that measures 10⁵Ω/sq. (static dissipative) and includes a ground chord and ground snap.)

Specifications

VIP Optical Data
Eyepieces	Objective 0.5x(Included)	Working Distance (mm)
10x	Total Magnification (Range)	4.0x – 25x	186
Field of View Diameter (mm)	57.5 – 5.8
15x	Total Magnification (Range)	6.0x – 37.5x	186
Field of View Diameter (mm)	42.5 – 6.8

Product Overview

More Information

SKU	G100975
Brand	UNITRON
ESD-Safe	Yes
Magnification	4.0x – 25x
Mount	Dual Boom Stand
Warranty	5 Years
