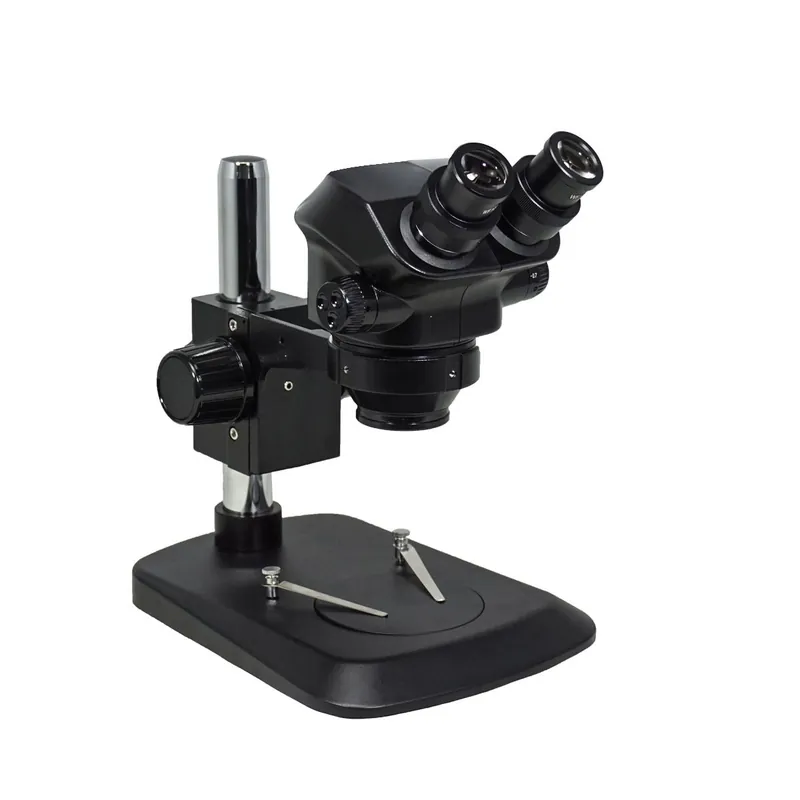

View Solutions SZ19040123 ESD-Safe Binocular Microscope with Post Stand

Specifications

Optical System

System Optical Magnification: 7-50X

System Field of View: Dia. 4-28.57mm

System Working Distance: 103mm

Binocular Zoom Body

Body Magnification: 7-50X

Zoom Range: 0.7-5X

Zoom Operating Mode: With Two Horizontal Knobs

Nosepiece Adapter Size for Ring Light: Dia. 54mm

Eye Tube Adjustment Mode: Siedentopf

Erect/Inverted Image: Erect image

Eye Tube Rotatable: 360° Rotatable

Interpupillary Adjustment: 45-65mm

Eye Tube Inner Diameter: Dia. 30mm

Eye Tube Diopter Adjustable: ±5°

Eyepiece Type: Standard Eyepiece

Eyepiece Optical Magnification: 10X

Plan Eyepiece

Eyepiece Size for Eye Tube: Dia. 30mm

Eyepiece Size for Reticle: Dia. 24mm

Eye Guard Installation: Independent Eye Guard

Eye Guard Mount Size: Dia. 36mm

Objective Working Distance: 103mm

Objective Screw Thread: M48x0.75mm

Surface Treatment: Spray Paint

Material: Metal

Color: Black

Net Weight: 1.16kg (2.56lbs)

Post Stand

Holder Adapter Type: Dia. 76mm Scope Holder

Vertical Post Height: 250mm

Vertical Post Diameter: Dia. 32mm

Base Type: Table Base

Base Shape: Fan-Shape

Base Dimensions: 206x273x22mm

Focus Mode: Manual

Focus Distance: 50mm

Coarse Focus Distance per Rotation: 25mm

Focusing Knob Tightness Adjustable: Tightness Adjustable

Center Distance from Hole to Scope Holder: 155mm

Surface Treatment: Spray Paint

Material: Metal

Color: Black

Net Weight: 2.48kg (5.47lbs)

Dimensions: 273 x 206 x 272mm (10.748 x 8.110 x 10.709in.)

Microscope Plate

Plate Type: Black White Plate

Plate Size: Dia. 100x6mm

Material: Plastic (ABS)

Color: Black, White

Net Weight: 0.05kg (0.11lbs)

Other Parameters

Surface Treatment: Spray Paint

Material: Metal

Color: Black

Net Weight: 3.65kg (8.05lbs)

Dimensions: 273x206x272mm (10.748×8.110×10.709 in. )

Product Overview

More Information

SKU	I202455
Part No.	SZ19040123
Brand	View Solutions
ESD-Safe	Yes
Magnification	7.0x-50x
Mount	Post Stand
