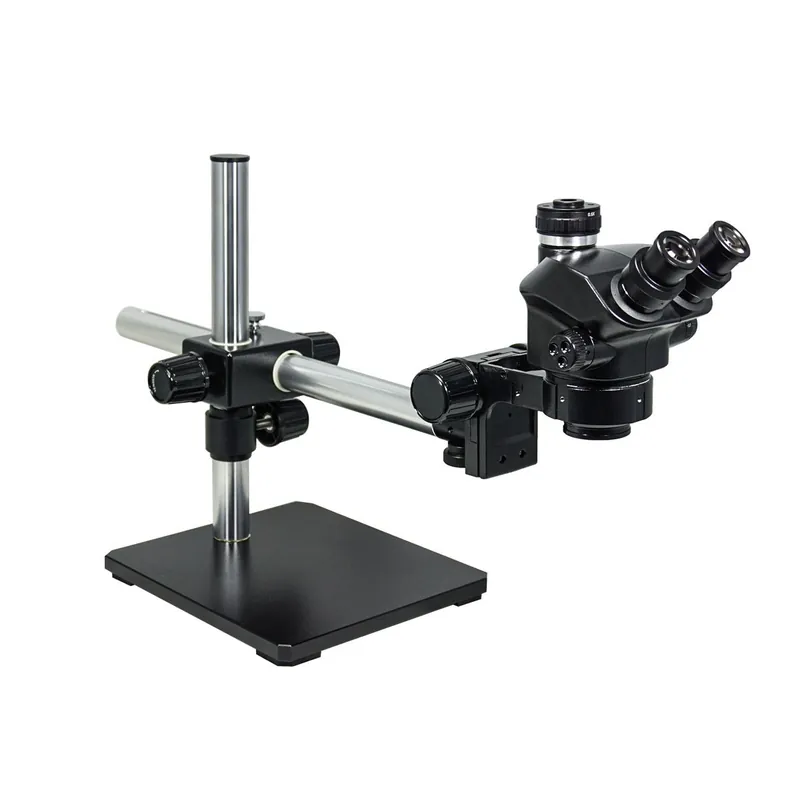

View Solutions SZ19040451 ESD-Safe Trinocular Microscope with Boom Stand

Specifications

Optical System

System Optical Magnification: 7-50X

Trinocular Optical Magnification: 0.35-2.5X

System Field of View: Dia. 4-28.57mm

System Working Distance: 103mm

Trinocular Zoom Body

Body Magnification: 7-50X

Zoom Range: 0.7-5.0x

Zoom Operating Mode: With Two Horizontal Knobs

Body Mount Type for Coupler: Thread Screw

Body Mount Size for Coupler: Dia. 28mm

Nosepiece Adapter Size for Ring Ligh:t Dia. 54mm

Eye Tube Adjustment Mode: Siedentopf

Erect/Inverted Image: Erect image

Eye Tube Rotatable: 360° Rotatable

Interpupillary Adjustment: 45-65mm

Eye Tube Inner Diameter: Dia. 30mm

Eye Tube Diopter Adjustable: ±5°

Eyepiece Type: Standard Eyepiece

Eyepiece Optical Magnification: 10X

Plan Eyepiece

Eyepiece Size for Eye Tube Dia. 30mm

Eyepoint Type: High Eyepoint Eyepiece

Eyepiece Size for Reticle: Dia. 24mm

Eye Guard Installation: Independent Eye Guard

Eye Guard Mount Size: Dia. 36mm

Built-in Objective Magnification: 1X

Objective Working Distance: 103mm

Objective Screw Thread: M48x0.75mm

Surface Treatment: Spray Paint

Material: Metal

Color: Orange

Net Weight: 1.27kg (2.80lbs)

Post Stand

Holder Adapter Type: Dia. 76mm Scope Holder

Vertical Post Height: 250mm

Vertical Post Diameter: Dia. 32mm

Base Type: Table Base

Base Shape: Fan-Shape

Base Dimensions: 206x273x22mm

Focus Mode: Manual

Focus Distance: 50mm

Coarse Focus Distance per Rotation: 25mm

Focusing Knob Tightness Adjustable: Tightness Adjustable

Center Distance from Hole to Scope Holder: 155mm

Surface Treatment: Spray Paint

Material: Metal

Color: Black

Net Weight: 2.48kg (5.47lbs)

Dimensions: 273x206x272mm (10.748×8.110×10.709 in. )

Microscope Plate

Plate Type: Black White Plate

Plate Size: Dia. 100x6mm

Material: Plastic (ABS)

Color: Black, White

Net Weight: 0.05kg (0.11lbs)

Coupler/C-mount Adapter

Coupler Mount Type for Trinocular: Fastening Screw

Coupler Mount Size for Trinocular: Dia. 38mm

Adjustable Coupler: Adjustable

Coupler for Microscope Type: Stereo Compatible

Coupler Magnification: 0.5X

C/CS-Mount Coupler: C-Mount

Surface Treatment: Electroplating Black

Material: Metal

Color: Black

Net Weight: 0.10kg (0.22lbs)

Other Parameters

Surface Treatment: Spray Paint

Material: Metal

Color: Black

Net Weight: 3.85kg (8.49lbs)

Dimensions: 273x206x272mm (10.748×8.110×10.709 in. )

Product Overview

More Information

SKU	I202466
Part No.	SZ19040451
Brand	View Solutions
ESD-Safe	Yes
Magnification	7.0x-50x
Mount	Boom Stand
