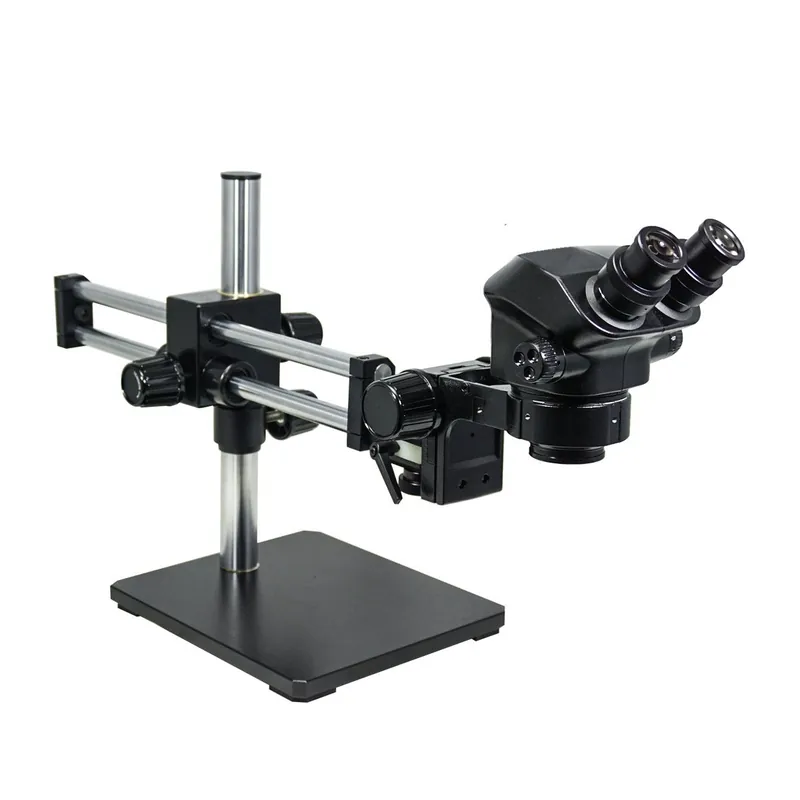

View Solutions SZ19040541 ESD-Safe Binocular Microscope with Dual Arm Stand

Specifications

Optical System

System Optical Magnification: 7-50X

System Field of View: Dia. 4-28.57mm

System Working Distance: 103mm

Binocular Zoom Body

Body Magnification: 7-50X

Zoom Range: 0.7-5X

Zoom Operating Mode: With Two Horizontal Knobs

Nosepiece Adapter Size for Ring Light: Dia. 54mm

Eye Tube Adjustment Mode: Siedentopf

Erect/Inverted Image: Erect image

Eye Tube Rotatable: 360° Rotatable

Interpupillary Adjustment: 45-65mm

Eye Tube Inner Diameter: Dia. 30mm

Eye Tube Diopter Adjustable: ±5°

Eyepiece Type: Standard Eyepiece

Eyepiece Optical Magnification: 10X

Plan Eyepiece

Eyepiece Size for Eye Tube: Dia. 30mm

Eyepoint Type: High Eyepoint Eyepiece

Eyepiece Size for Reticle: Dia. 24mm

Eye Guard Installation Independent Eye Guard

Eye Guard Mount Size: Dia. 36mm

Built-in Objective Magnification: 1X

Objective Working Distance: 103mm

Objective Screw Thread: M48x0.75mm

Surface Treatment: Spray Paint

Material: Metal

Color: Black

Net Weight: 1.16kg (2.56lbs)

Dual Arm Stand

Vertical Post Height: 380mm

Maximum Vertical Post Extended Length: 254mm

Vertical Post Diameter: Dia. 37mm

Cross Adapter Type Triple (3) Hole Adapter

Horizontal Arm Type: Double Bar

Horizontal Arm Length: 544mm

Horizontal Diameter: Dia. 20mm

Mounting Hole on the Top of Horizontal Arm: 5/8 in. End Adapter

Horizontal Rotation Angle: 360° Rotatable

Horizontal Arm Travel Distance on Z-Axis: 220mm

Horizontal Arm Stretch Range: 320mm (12.598 in. )

Horizontal Arm Maximum Load: 9.50kg (20.94lbs)

Horizontal Arm Travel Mode on Horizontal Direction: Ball Bearing

Horizontal Arm Travel Mode on Z Direction: Manual

Base Type: Heavy Duty Base

Base Shape: Rectangle

Base Dimensions: 285x260x25mm

Surface Treatment: Plastic Spray Coating

Material: Metal

Color: Black

Net Weight: 16.70kg (36.82lbs)

Dimensions: 544x285x405mm (21.417×11.220×15.945 in. )

E-Arm

Holder Adapter Type: Dia. 76mm Scope Holder

Focus Distance: 50mm

Coarse Focus Distance per Rotation: 20mm

E-Arm Rotation Range on Horizontal Direction: 360°

E-Arm Rotation Range on Z Direction: 180°

E-Arm Mounting Adapter: 5/8 in. End Adapter

Center Distance from E-Arm Adapter to Scope Holder: 130mm

E-Arm Horizontal Adjustment Screw: Horizontal Adjustable

Safety Protection Against Falling Screw: With Safety protection against falling Screw

Surface Treatment: Plastic Spray Coating

Material: Metal

Color: Black

Net Weight: 0.84kg (1.85lbs)

Other Parameters

Surface Treatment: Spray Paint

Material: Metal

Color: Black

Net Weight: 18.70kg (41.23lbs)

Dimensions: 544x285x405mm (21.417×11.220×15.945 in. )

Product Overview

More Information

SKU	I202467
Part No.	SZ19040541
Brand	View Solutions
ESD-Safe	Yes
Magnification	7.0x-50x
Mount	Dual Boom Stand
