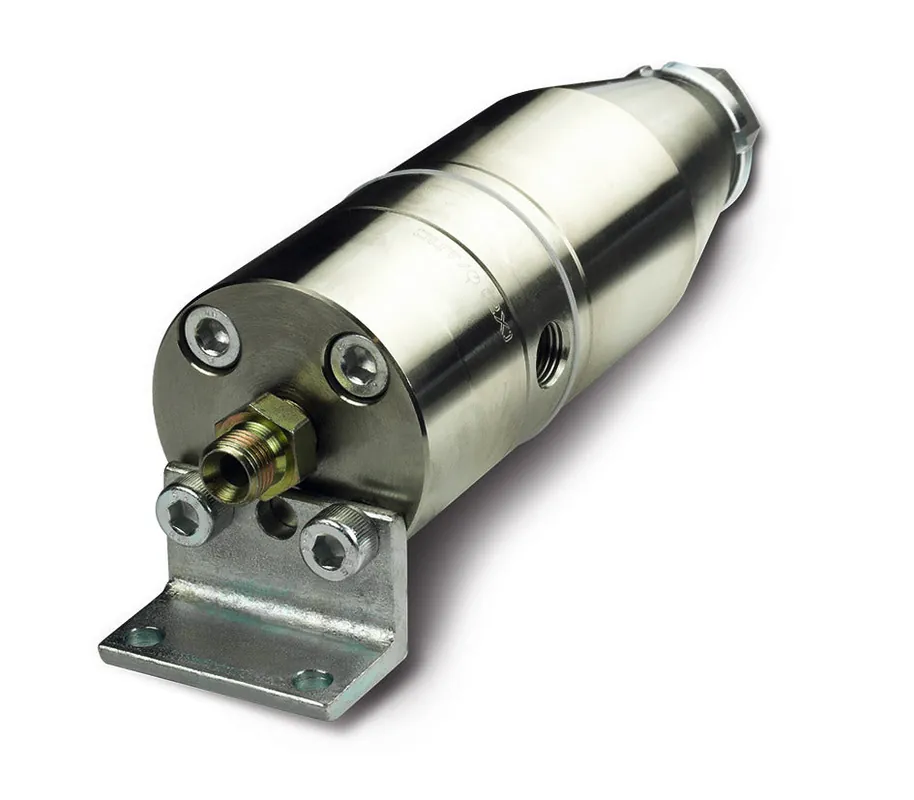

Manual High Pressure Paint Pressure Regulators T092 Series
Manufacturer: Wagner
Part Number: T092.00X
Description: Manual adjustable high pressure regulator. Made from stainless steel and Ultra-high density polyethylene diaphragms suitable for almost all material.
Versions Available:
Part No.
Range (bar)
Max Material Delivery Rate (cm³/min)
Body Material
Diaphragm Set
T092.00AI
10-60
3100
SSt
T9061.00
T092.00BI
30-120
3100
SSt
T9061.00
Specifications:
Max. inlet pressure
300 bar
Sealing material
UHMW-PE
Material inlet
G 1/4″–F
Material outlet
G 1/4″–F
Parts and Accessories:
Spare Parts List T092.00AI, T092.00BI
Ref No.
Part No.
Description
QTY
1
B640.03A
Lower reducer body
1
2
B637.03
Ball guide
1
3
H261.03
Spring
1
4
K828.04
Carbide D5 ball
1
5
L130.06
EPDM O-ring
2
6
T6008.00
Complete ball seat body
1
7
B391.03
Shutter stem
1
8
B639.03
Main reducer body
1
9
B641.03
Product diaphragm disk
1
10
G760.07
Diaphragm
2
11
B148.03
Small piston
1
12
B145.12
Intermediate flange
1
13
B634.52
Spring guide
1
14
H266.02
Cup spring (see exploded view)
–
15
B147.12
Upper reducer body
1
16
K303.62A
Ring nut M25
1
17
B594.03
Adjustment screw
1
18
E506.62
Pressure reducer support
1
19
M801.03B
SSt 1/4 Nipple
1
20
K109.62
Socket screw 8×80
2
21
K193.62
Socket screw M8x70
2
T9061.00
Seal gasket set
–
Literature:
