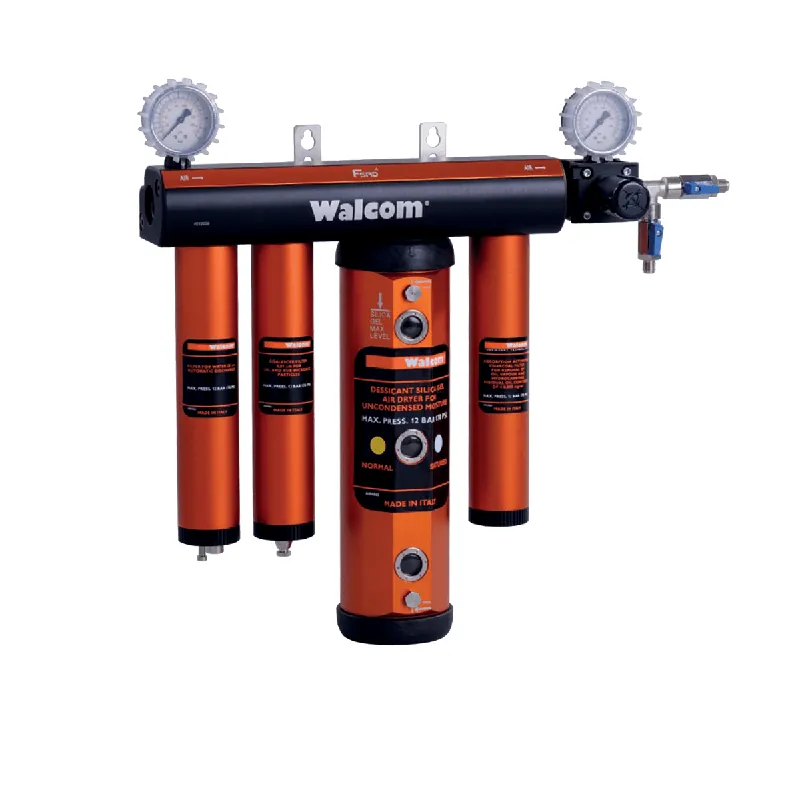

Walcom Thermodry Compressed Air Filtration System – FSRD 4

Walcom Four Stage Compressed Air Filtration System – FSRD 4

Manufacturer: Walcom

Part #: 60138/11

Description: A modular filter system ideal for use in the painting booth.

4-Stage Filtration:

Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.

Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.

Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights.

Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m3

Specifications:

Pressure adjuster: Membrane system and automatic decompression

Air inlet: F 3/4″

Air outlet: Nr. 2 from M 1/4″

Filtering power: Air 5µ – oil 0.01µ

Working pressure: 12 bar

Air consumption: 1200 l/min to 6 bar

Weight: 11 Kg
