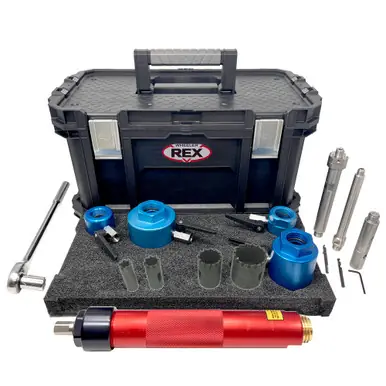

WHEELER-REX 8204 – Hot Tapping System 3/4″-2″ CTS, Ductile & Cast Iron

WHEELER-REX 8204 Hot Tapping System 3/4″, 1″, 1-1/2″, 2″ CTS, Ductile Iron and Cast Iron

The WHEELER-REX Hot Tapping System is hand operated and designed for drilling holes in active water lines up to 250 psi. It is lightweight and easy for one person to set up and use. Built-in bleed-off valve allows chips to be flushed away.

Includes:

(1) 802050 3/4″ CTS Flare Adapter

(1) 802052 1″ CTS Flare Adapter

(1) 802056 1-1/2″ CTS Flare Adapter

(1) 802058 2″ CTS Flare Adapter

(1) 904065 3/4″ Cutter Shell for Ductile Iron and Cast Iron

(1) 904066 1″ Cutter Shell for Ductile Iron and Cast Iron

(1) 904068 1-1/2″ Cutter Shell for Ductile Iron and Cast Iron

(1) 904069 2″ Cutter Shell for Ductile Iron and Cast Iron

(1) 6515 Ratchet

(1) 701440 1-1/2″ & 2″ Large Arbor Assembly

(1) Tool box

Note:  The 701440 arbor is for cutting larger holes in difficult materials. This arbor is to be used with 1-1/2″ and 2″ cutter shells for all three WHEELER-REX hot tap systems. The new arbor design has drive pins that align with holes in the large cutter shells for a stronger assembly.

All Hot Tapping System Kits:

MODEL#	8100	8102	8200	8201	8202	8203	8204	8205	8206	8209	8300
Pipe Sizes	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″	3/4″
1″	1″	1″	1″	1″	1″	1″	1″	1″	1″	1″
	1-1/4″
	1-1/2″			1-1/2″		1-1/2″		1-1/2″	1-1/2″
	2″			2″		2″		2″	2″
Adapter Threads											BSPT
NPT	NPT
		CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare	CTS Flare
									Compression
Pipe Materials	Steel	Steel	Steel								Steel
Copper	Copper	Copper								Copper
			Plastic	Plastic			Plastic	Plastic	Plastic
					Cast Iron	Cast Iron	Cast Iron	Cast Iron	Cast Iron
					Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron
