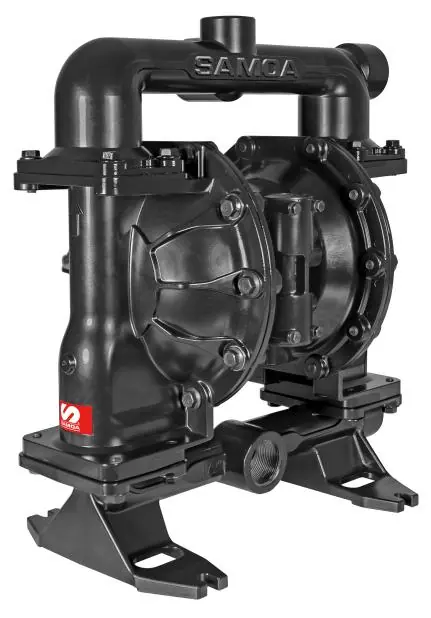

UP15 Aluminum Pivot Series 1-1/2″ Air-Operated Double Diaphragm Pump

Manufacturer: Samoa

Part #: UP15A-NAC-ATZ

Description: Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.

Features:

Higher Efficiency – Maximum fluid flow with reduced air consumption.

Increased Reliability – No stall, no icing, reliable start-up and longer air valve and diaphragms life.

Unique Frictionless Picot-Shaft – Fast shifting reduces air cosumption, with a smooth pump operation, no icing and no whistle noises.

Easy Servicing – Simplified maintenance and cleaning. Components designed for long life and reliability.

This Pivot Series Compact Line model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C)

Materials:

Central Body and Air Chambers:	Aluminum
Fluid Chambers and Manifolds:	Aluminum
Hardware Bolts:	Carbon Steel
Valve Seats:	Aluminum
Valve Balls:	PTFE
Diaphragm Type and Material:	2-Piece PTFE
Wetted materials	ptfe-ptfe-aluminium

Specifications:

Pump Size	1-1/2″
Pressure Ratio	1:1
Maximum Free Flow Delivery	475 l/min (125 gal/min)
Air Pressure Range	1.5 – 8 bar (20 – 120 psi)
Max. Size Solids in Suspension	6.4 mm (1/4″)
Max. Dry Suction Head	6 m (19.6′)
Max. Wet Suction Head	9 m (29.5′)
Displacement Per Cycle	2.5 L (0.66 gal)
Fluid Inlet Connection	1-1/2″ BSP (F)
Fluid Outlet Connection	1-1/2″ NPT (F)
Air Inlet Connection	1/2″ NPT (F)
Air Exhaust Connection	1″ NPT (F)
Sound Level	83 dB
Certification	ATEX
Weight	23 kg (50.71 lb)
